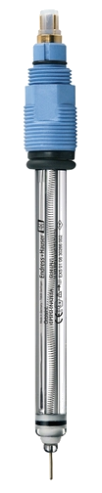

Endress Hauser CPS12 Analog ORP sensor Orbisint
Part Number: 51513586-1
contact Lenntech voor meer informatie of een aanbieding
Prijsaanvraag en beschikbaarheid
Endress Hauser CPS12 Analog ORP sensor Orbisint
Specificaties
| Meetprincipe | Sensor ORP / Redox |
|---|---|
| Kenmerken | Very robust, heavy-duty / high pressure, integrated potential matching. |
| Ontwerp | All shaft lengths with temperature sensor. Advanced gel technology. |
| Process druk bar | max. 16bar (230psi) |
| Elektrode diameter mm | Diameter: 12 mm (0.46 inch) |
| Elektrode lengte mm | Shaft lengths: 120, 225, 360 and 425 mm |
| Toepassing | Standard applications in process and environment. Long-term monitoring, processes with little changes. |
| Brand_ | Endress Hauser |
| Connectie | TOP68 connection head |
| Materiaal | Glass electrode with PTFE diaphragm and gold pin or platinum ring. |
| Meetbereik (a) | 1500 mV to +1500 mV |
| ModelName | CPS12 Analog ORP sensor Orbisint |
| PartNumber | 51513586-1 |
| process_temprature_c | max. 135°C (274°F) |
