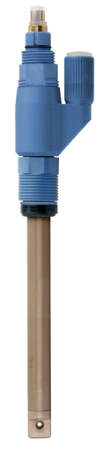

Endress Hauser CPS441 Digital non-glass pH sensor Memosens
Part Number: 71112323
contact Lenntech voor meer informatie of een aanbieding
Prijsaanvraag en beschikbaarheid
Endress Hauser CPS441 Digital non-glass pH sensor Memosens
Specificaties
| Meetprincipe | ISFET sensor |
|---|---|
| Kenmerken | Ion sensitive field effect transistor (ISFET) technology |
| Ontwerp | All shaft lengths with temperature sensor |
| Process druk bar | max. 10 bar/100°C (145 psi/212°F) |
| Elektrode diameter mm | Diameter: 12 mm (0.47 inch) |
| Elektrode lengte mm | Shaft lengths: 120, 225, 360, 425 mm |
| Toepassing | - Special applications with high requirements with regard to accuracy and speed - non-glass, break-proof - low temperatures - rapidly changing composition of media - highly clogging media - low conductivities |
| Brand_ | Endress Hauser |
| Connectie | TOP68 connection head |
| Materiaal | Peek / metal oxide / ceramic / EPDM |
| Meetbereik (a) | pH 0 to 14 |
| ModelName | CPS441 Digital non-glass pH sensor Memosens |
| PartNumber | 71112323 |
| process_temprature_c | -15°C ... 135°C (5°F - 275°F) |
| Opmerkingen | Out of production |
