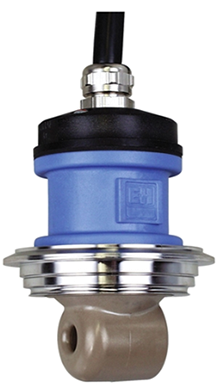

Endress Hauser CLS52 Analog conductivity sensor Condumax
Part Number: 71313408
contact Lenntech voor meer informatie of een aanbieding
Prijsaanvraag en beschikbaarheid
Endress Hauser CLS52 Analog conductivity sensor Condumax
Specificaties
| Meetprincipe | Inductive |
|---|---|
| Kenmerken | Hygienic inductive measuring cell |
| Ontwerp | Hygienic inductive conductivity cell with an outside temperature sensor for a faster temperature reading. |
| Process druk bar | Max. 16 bar at 90 °C (Max. 232 psi at 194 °F) |
| Elektrode diameter mm | Coil: outside diameter: appr. 47 mm inside diameter: appr. 15 mm |
| Toepassing | Food, pharmaceuticals |
| Brand_ | Endress Hauser |
| Connectie | Process connections: dairy fitting, Clamp, thread 1,5", Varivent, APV, Perlick, SMS cable: fixed cable connection. |
| Materiaal | Sensor: PEEK. Heat contact nut: stainless steel 1.4435. Sealing: Chemraz. |
| Meetbereik (a) | 0.1 to 2000 mS/cm |
| ModelName | CLS52 Analog conductivity sensor Condumax |
| PartNumber | 71313408 |
| process_temprature_c | Max. 125°C (short time up to 140°C) max. 257°F (short time up to 284°F) |
