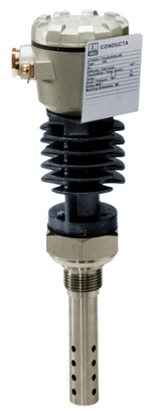

Endress Hauser Analog conductivity sensor Condumax
Part Number: CLS13
contact Lenntech voor meer informatie of een aanbieding
Prijsaanvraag en beschikbaarheid
Endress Hauser Analog conductivity sensor Condumax
Specificaties
| Meetprincipe | Conductive |
|---|---|
| Kenmerken | 2-electrode conductivity cell |
| Ontwerp | 2-electrode conductivity cell with coaxially arranged electrodes. Connection head and cooling body made of casting aluminium with fixed cable connection PG16. |
| Process druk bar | max. 40 bar (580 psi) |
| Elektrode diameter mm | Electrode diameter: 25 mm (0.984 inch) |
| Elektrode lengte mm | Immersion depth: 50-115 mm (1.97 - 4.48 inch) |
| Toepassing | Process, power plant |
| Brand_ | Endress Hauser |
| Connectie | Process connection. G1" |
| Materiaal | Electrode: 1.4571. Sealing: Kalrez, ceramic. |
| Meetbereik (a) | k=0,01: 0-20,0 µS/cm |
| Meetbereik (b) | k=0,1: 0-200,0 µS/cm |
| ModelName | CLS13 Analog conductivity sensor Condumax |
| PartNumber | CLS13 |
| process_temprature_c | max. 250°C (482°F) |
