Grundfos DMH 770-10 D3-PVCL/V/G-X-E1B8B8XMPAG (99821640)
Produkt ID: 99821640
Prijsaanvraag en beschikbaarheid
Grundfos DMH 770-10 D3-PVCL/V/G-X-E1B8B8XMPAG (99821640)
Grundfos DMH 770-10 D3-PVCL/V/G-X-E1B8B8XMPAG (99821640)
| Regeling: | |
| Type aansluiting: | No plug |
| Type of controlevariant: | Servomotor 1AC115-230V50/60Hz |
| Frequency converter: | Niet voorbereid voor frequentie omvormer |
| Vloeistof: | |
| Te verpompen medium: | Water |
| Bereik vloeistoftemperatuur: | 0 .. 40 °C |
| Medium temperatuur tijdens bedrijf: | 20 °C |
| Dichtheid: | 998.2 kg/m³ |
| Technisch: | |

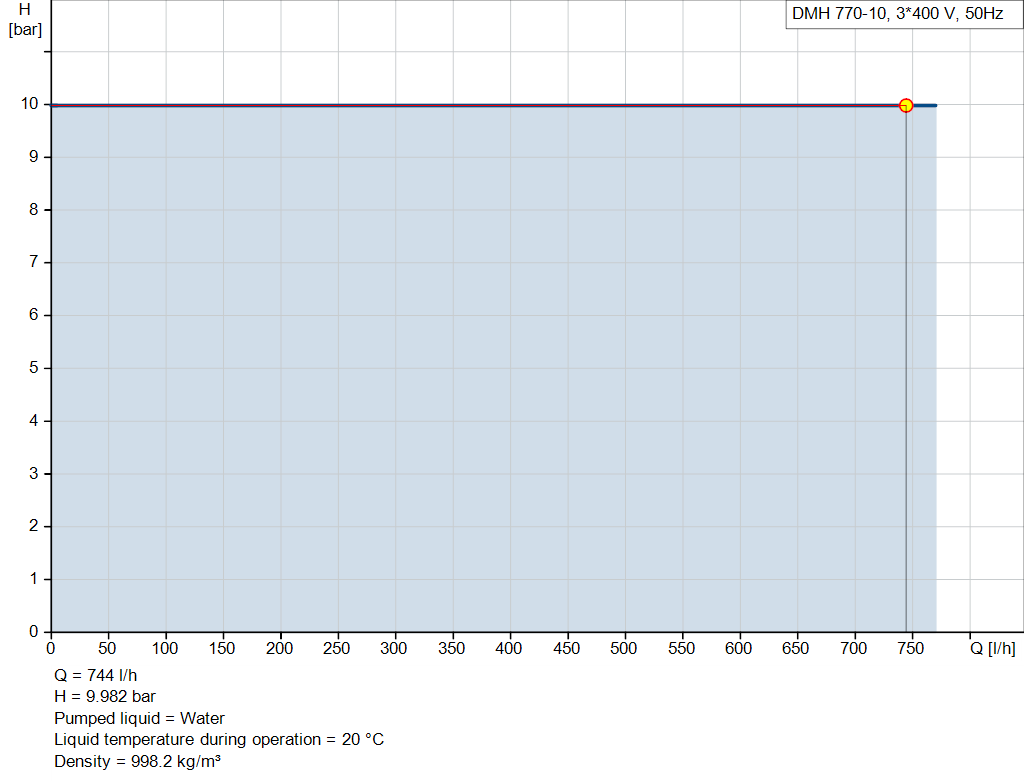

| Nominaal debiet bij 50 Hz: | 770 l/h |
| Aantal doseerkoppen: | 1 |
| Goedkeuringen: | CE,EAC,CNROHSEX |
| Type terugslagklep, inlaatpomp 1: | Standard |
| Type terugslagklep, uitlaatpomp 1: | Standard |
| Max viscositeit: | 50 mPas |
| Materialen: | |
| Pomphuis: | Aluminium |
| Doseerkop, pomp 1: | Plastic |
| PVC | |
| Materiaal kogel: | Glass |
| Klep kogel: | SiLibeads Type P |
| Klepzitting: | Plastic |
| Klep zitting: | PE |
| Afdichting: | FKM |
| Rubber | |
| Installatie: | |
| Max. Werkdruk bij 50 Hz: | 10 bar |
| Maximaal toelaatbare voordruk: | 0.8 bar |
| Type zuig aansluiting: | Cementing |
| Type persaansluiting: | Cementing |
| Maat van de zuigaansluiting: | 40 |
| Maat van de persaansluiting: | 40 |
| Elektrische gegevens: | |
| Vermogen P1: | 1 kW |
| Netfrequentie: | 50 Hz |
| Max. frequentie: | 50 Hz |
| Nominale spanning: | 3 x 230/400 V |
| Dichtheidsklasse (IEC 34-5): | IP65 |
| Kabel inbegrepen (ja/nee): | N |
| Stekker: | No plug |
| Overige: | |
| Netto gewicht: | 65 kg |
| Bruto gewicht: | 73.7 kg |
| Transportvolume: | 0.995 m³ |
| Membraan Lekdetectie: | Y |
