Grundfos CR 1-8 B-FGJ-A-V-HQQV
Produkt ID: 98042424
Prijsaanvraag en beschikbaarheid
Grundfos CR 1-8 B-FGJ-A-V-HQQV
Grundfos CR 1-8 B-FGJ-A-V-HQQV
| Vloeistof: | |
| Te verpompen medium: | Water |
| Bereik vloeistoftemperatuur: | -20 .. 90 °C |
| Medium temperatuur tijdens bedrijf: | 20 °C |
| Dichtheid: | 998.2 kg/m³ |
| Technisch: | |

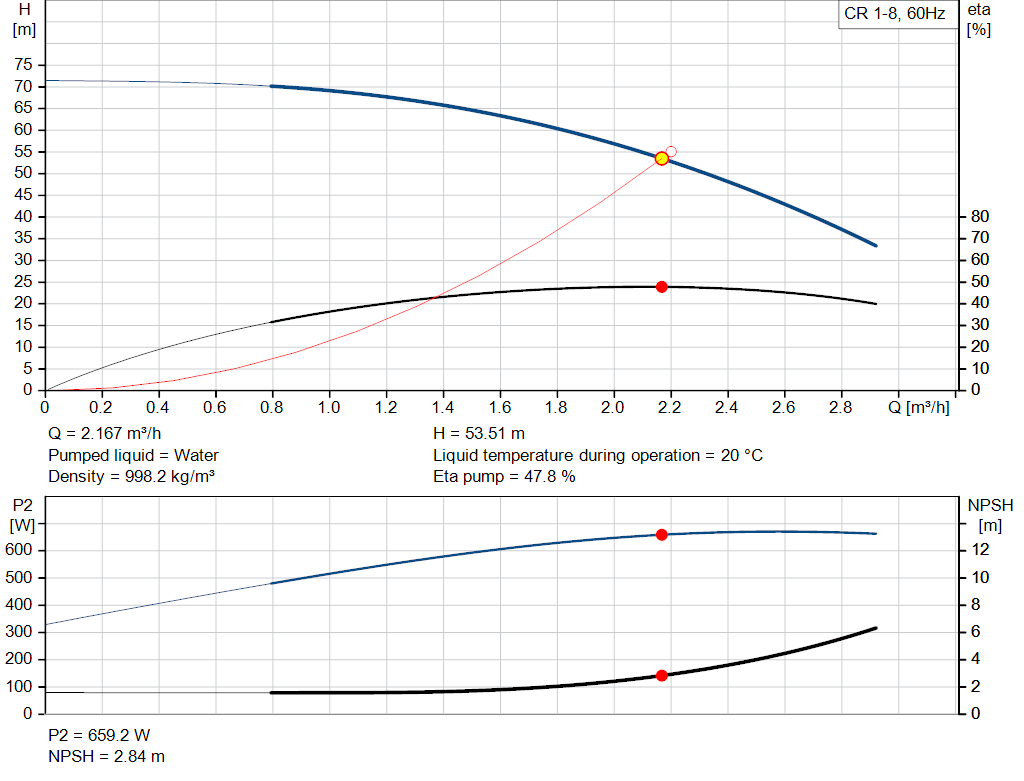

| Toerental waarop de pompgegevens zijn gebaseerd: | 3474 omw/min |
| Nominaal debiet: | 2.2 m³/u |
| Nominale opvoerhoogte: | 55.1 m |
| Plaatsing: | Verticaal |
| Asafdichting arrangement: | Enkel |
| Primaire asafdichting: | HQQV |
| Code voor asafdichting: | HQQV |
| Curve tolerantie: | ISO9906:2012 3B |
| Materialen: | |
| Pomphuis: | Gietijzer |
| EN 1561 EN-GJL-200 | |
| ASTM A48-25B | |
| Waaier: | Roestvast staal |
| EN 1.4301 | |
| AISI 304 | |
| Installatie: | |
| Maximale bedrijfsdruk: | 25 bar |
| Max. druk bij toegestane temp: | 25 bar / 90 °C |
| 25 bar / -20 °C | |
| Type aansluiting: | DIN / ANSI / JIS |
| Maat van de zuigaansluiting: | DN 25/32 |
| 1 1/4 inch | |
| Maat van de persaansluiting: | DN 25/32 |
| 1 1/4 inch | |
| Druktrap voor leidingaansluiting: | PN 25 |
| Druktrap van de zuigaansluiting: | 250 lb |
| Flensmaat van de motor: | FT100 |
| Elektrische gegevens: | |
| Motor standaard: | IEC |
| Vermogen (P2) benodigd voor pomp: | 1.1 kW |
| Regeling: | |
| Frequency converter: | NONE |
| Druksensor: | N |
| Overige: | |
| Netto gewicht: | 29.5 kg |
| Bruto gewicht: | 32.3 kg |
| Transportvolume: | 0.074 m³ |
