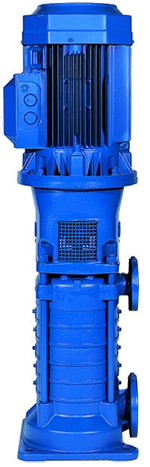

Lowara TDB Vertical Multistage Pumps
Specifications
Flow
Head
Range
Operating pressure
Ambient temperature
Liquid temperature
Power supply
Insulation class
Enclosure class
max 340 m³/h
max 500 m
2,2 - 90 kW (3 - 120 HP)
16 / 25 bar
0° - 40° C
max 140° C
3~ 230 - 400V to 4kW, over 400/690V
F (155° C)
IP55
Materials
Pump body
Impeller
Elastomers
Mechanical seals
Cast iron
Stainless Steel AISI 304
EPDM
Silicon Carbide-Carbon
Identification
TDB12001/1AF370T1
TDB
120
01
1A
F
370
T
1
/D
-
serial name
nominal flow m³/h
number of impellers
impeller combination and types
F = Cast iron
37 kW rated motor power (kW x 10)
T = three-phase
position of therminal box
pump fits IE3 motor
Datasheet
